SUN30/SUN45 Punch & Die Set - 6 Pack

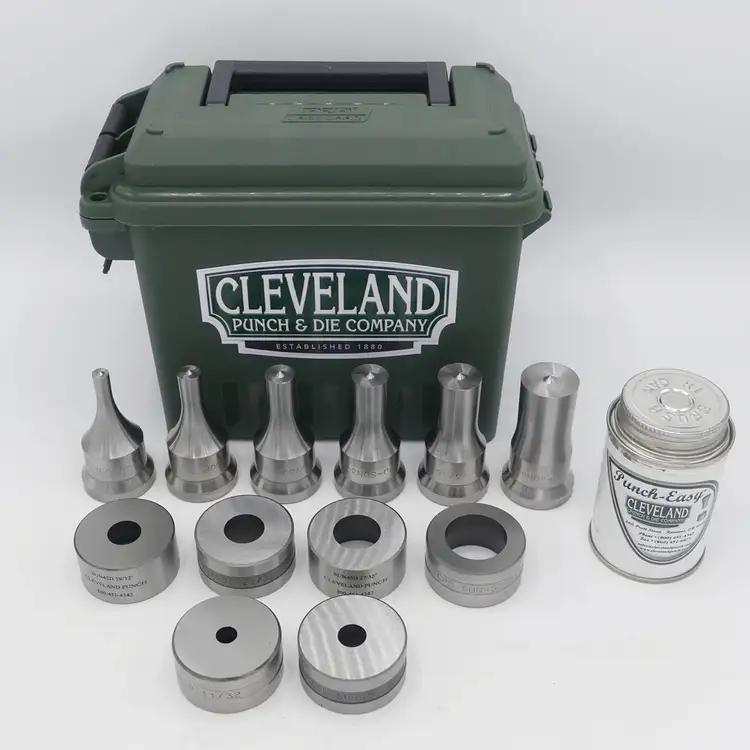

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 SUN30 Round Punches, 6 SUN45 Round Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

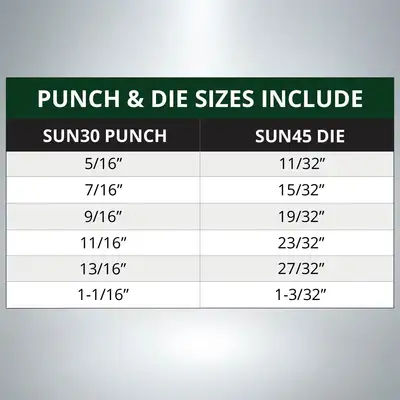

Punch & Die Sizes Include:

SUN30 Punch
5/16", 7/16", 9/16", 11/16", 13/16", 1-1/16"

SUN45 Die
11/32", 15/32", 19/32", 23/32", 27/32", 1-3/32"

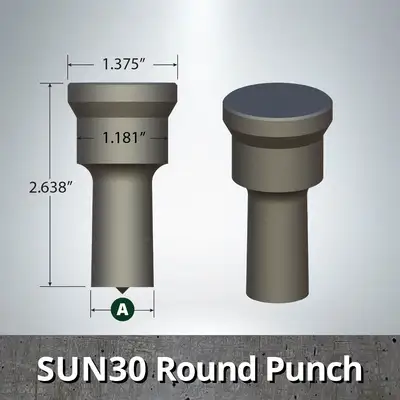

SUN30 Punch Dimensions: Head Diameter: 1.375" Body Diameter: 1.181" Overall Length: 2.638"

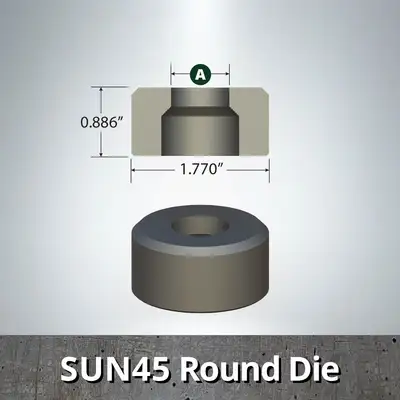

SUN45 Die Dimensions: Outside Diameter: 1.770" Height: 0.886"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

SUN30 Punch
AP-SP1, CST-SUN30P, SUN-RP1

SUN45 Die
AP-SD1, CST-SUN45P, SUN-RP1

Proudly Made in the USA
