SR20K/F155 Punch & Die Set - 6 Pack

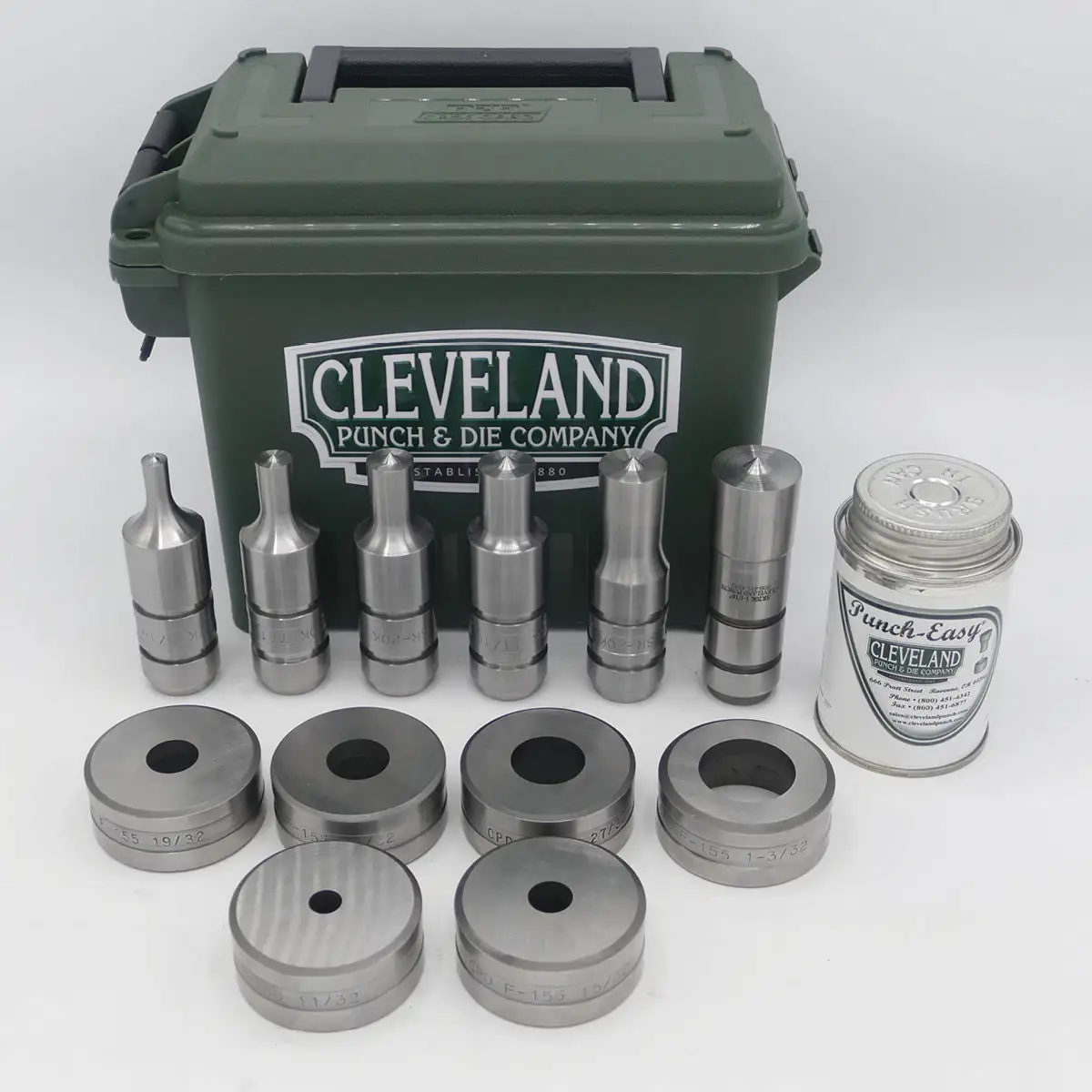

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 SR20K Round Punches, 6 F155 Round Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

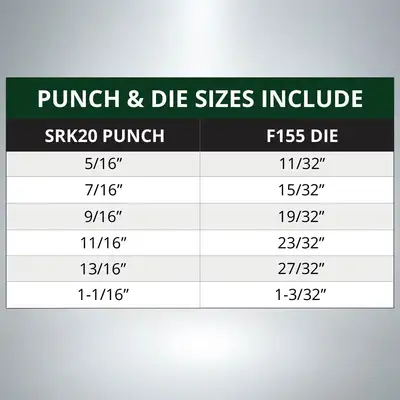

Punch & Die Sizes Include:

SR20K Punch
5/16", 7/16", 9/16", 11/16", 13/16", 1-1/16"

F155 Die
11/32", 15/32", 19/32", 23/32", 27/32", 1-3/32"

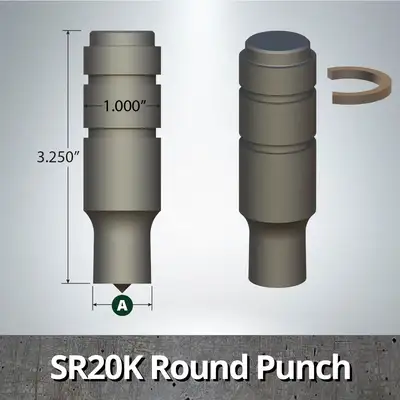

SR20K Punch Dimensions: Shank Diameter: 1.000" Overall Length: 3.250"

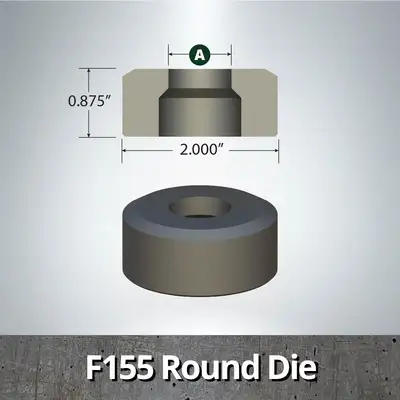

F155 Die Dimensions: Outside Diameter: 2.000" Height: 0.875"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

SR20K Punch
AP-190, CST-DVP/UHP, GFM-150/151, PIR-BF, SCOT-20

F155 Die
AP-351, CST-DVD/UHD, GFM-155, PIR-BG, SCOT-20

Proudly Made in the USA
