PD1240 Edwards™ Round Ironworker Punch & Die Set 12-pk

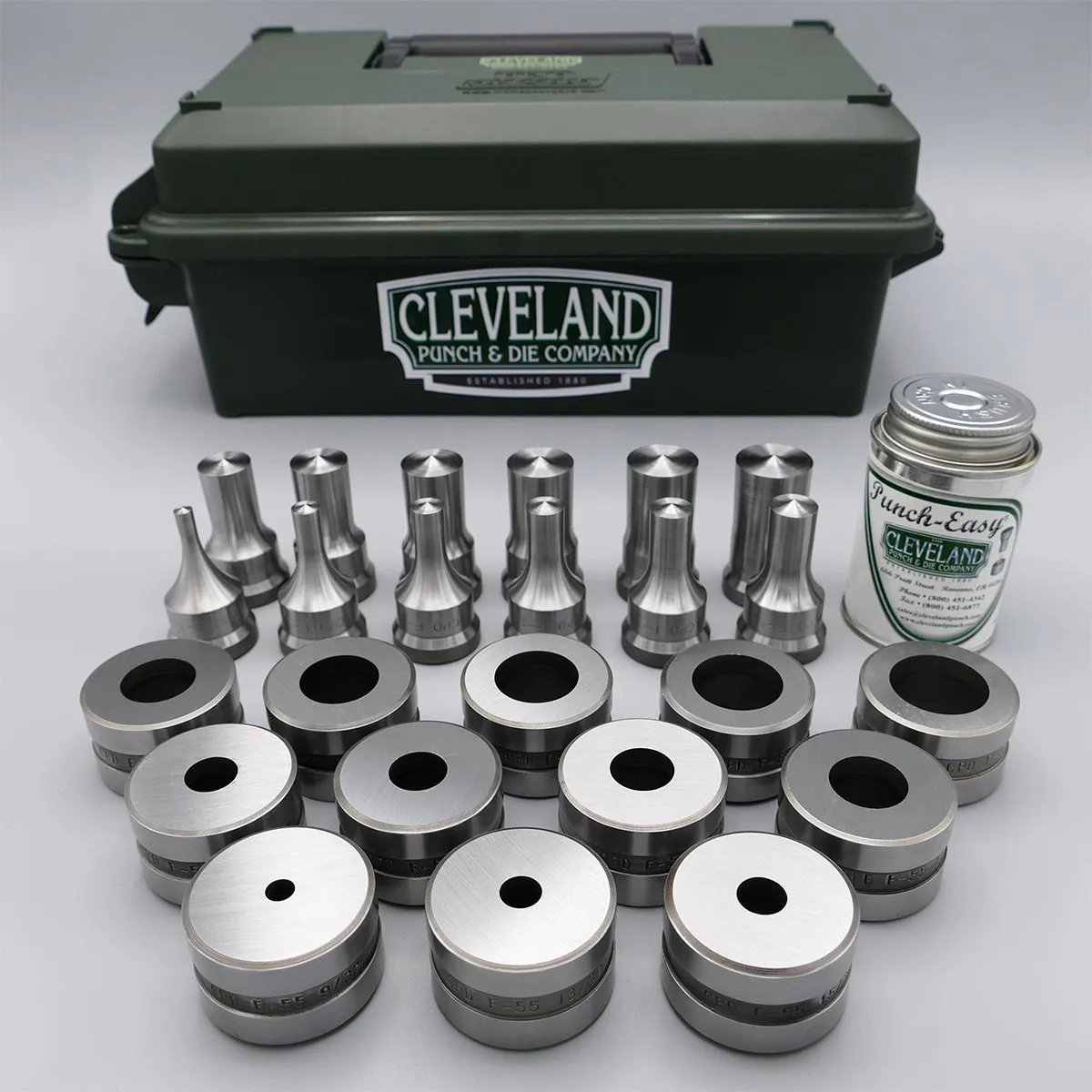

Edwards™ Round Punch and Die Set is complete with (12) F16 Punches, (12) F55 Dies, and a half pint of Punch-Easy® lubricant; conveniently packed in a large, durable toolbox. Replacement set for an Edwards™ PD1240 Punch and Die Set.
Punches and dies are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. This 12-piece set ensures you have the punch and die size you need on hand for daily and future fabricating jobs.

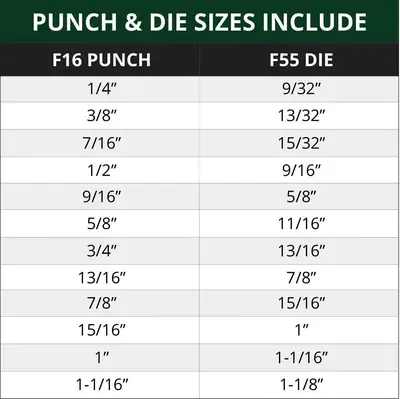

Punch & Die Sizes Included:

Type
Sizes

Punches (F16)
1/4", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16"

Dies (F55)
9/32", 13/32", 15/32", 9/16", 5/8", 11/16", 13/16", 7/8", 15/16", 1", 1-1/16", 1-1/8"

Material thickness should not exceed punch size.The punch and die should NOT be the same size.

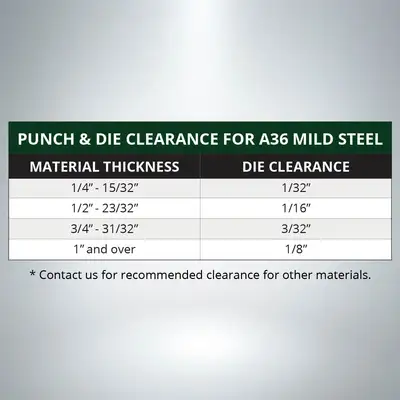

Punch & Die Clearance:
Use the chart, in the image carousel above, to determine recommended die clearance. Pre-determined clearances ensure optimal hole quality in mild steel.
Specifications:

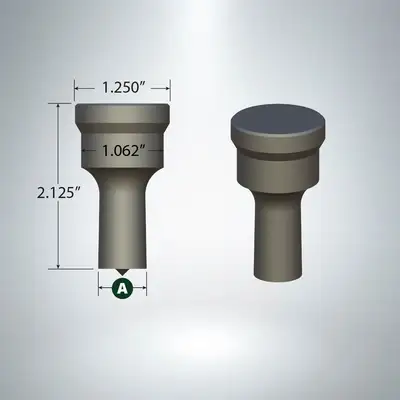

F16 Punch: 1.250" head diameter, 1.062" body diameter, 2.125" overall length

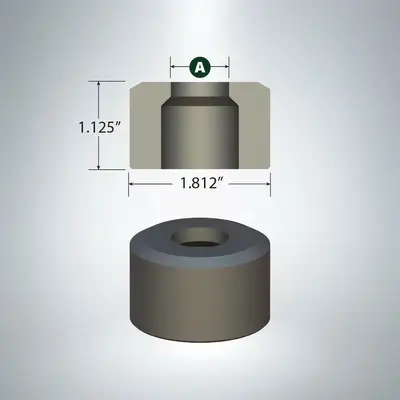

F55 Die: 1.812" outside diameter, 1.125" height

Set is Compatible for the Following Edwards™ Models:

Edwards™ 25 Ton
Edwards™ 40 Ton
Edwards™ 50 Ton
Edwards™ 55 Ton
Edwards™ 60 Ton
Edwards™ 65 Ton
Edwards™ 70 Ton
Edwards™ 75 Ton
Edwards™ 85 Ton
Edwards™ 100 Ton
Edwards™ 110 Ton
Edwards™ 115 Ton
Edwards™ 120 Ton

Proudly Made in the USA
