AP-119 / AP-313 American Punch™ Round Ironworker Punch & Die Set 12-pc

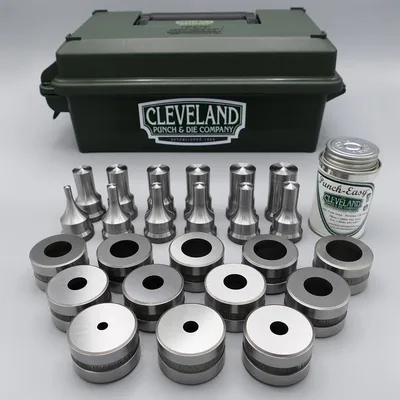

American Punch™ Round Punch and Die Set is complete with (12) F16/AP-119 punches, (12) F55/AP-313 dies, and a half pint of Punch-Easy® lubricant; conveniently packed in a large, durable toolbox.
Punches and dies are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. This 12-piece set ensures you have the punch and die size you need on hand for daily and future fabricating jobs.
Punch & Die Sizes Included:

Type
Sizes

Punches (F16/AP-119)

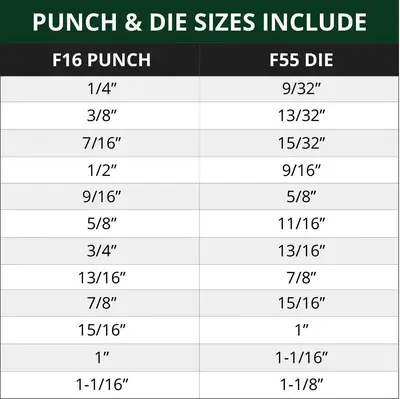

1/4", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16"

Dies (F55/AP-313)
9/32", 13/32", 15/32", 9/16", 5/8", 11/16", 13/16", 7/8", 15/16", 1", 1-1/16", 1-1/8"

Material thickness should not exceed punch size.The punch and die should NOT be the same size.
Punch & Die Clearance:

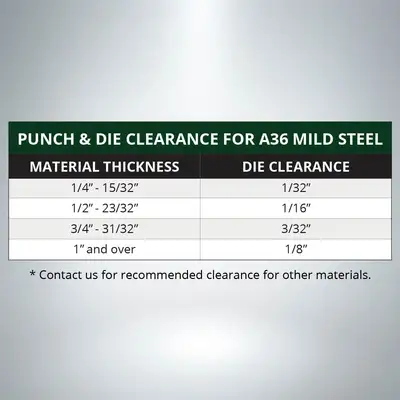

Use the chart, in the image carousel above, to determine recommended die clearance. Pre-determined clearances ensure optimal hole quality in mild steel.
Specifications:

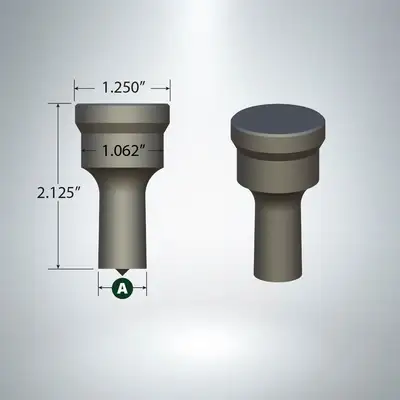

F16/AP-119 Punch: 1.250" head diameter, 1.062" body diameter, 2.125" overall length

F55/AP-313 Die: 1.812" outside diameter, 1.125" height

Replacement For:

American Punch™ (AP-119 punch, AP-313 die)
Cleveland Punch & Die™ (F16 punch, F55 die)
Cleveland Steel Tool™ (CST-219 punch, CST-413 die)
Piranha™ (PIR-DH punch, PIR-JB die)
Ironworker Machines: Cayman™, Edwards™, Hawthorne™, Megaworker™, Nelson™, Omes™, Piranha™, Pittsburgh™, and Polmaco™
