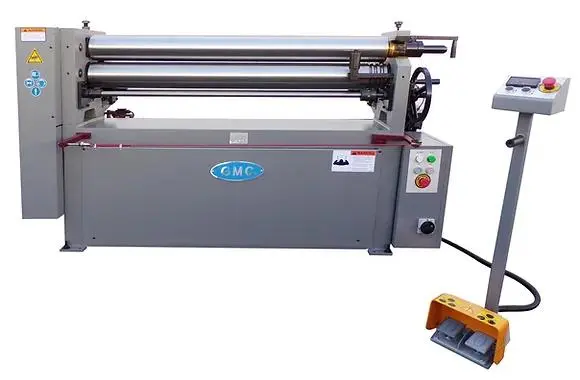

PBR-0810E, Power Bending Rolls 8' x 10Ga.

Description

This machine has a 4HP Motor, rated at 220V three phase. Power bending roll up/down with push button & display.

Standard Features

SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included

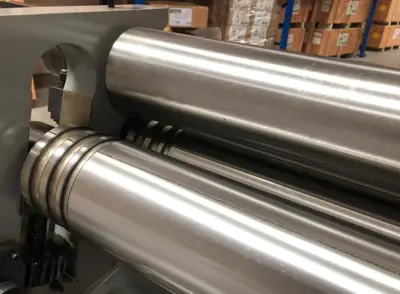

3/8”, ½” and 5/8” grooves on rollers

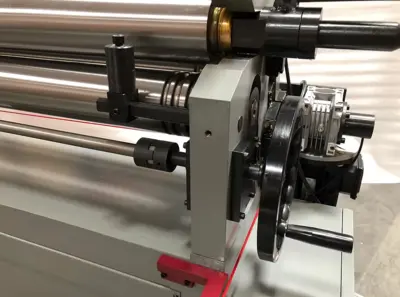

One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts

Standard Included Equipment

-Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
