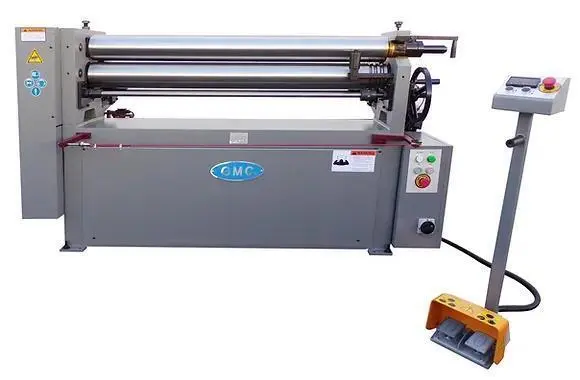

This machine has a 4HP Motor, rated at 220V three phase. Power bending roll up/down with push button & display.
Standard Features
SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
Standard Included Equipment
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
Capacity:
Mild Steel: 10' x 10Ga.
Stainless Steel: 10' x 14Ga
soft aluminum: 10' x 1/4"
min. thickness: 26Ga
Roll Dia.: 6.70"
Min. Bending Dia. Inch: 9"
Pre-bend inch: 0.12"
Rolls Speed ft/min: 17
Rolls Opening : 1/2"
Main Motor: 7 1/2HP 3PH 220V or 440V
Weight: 5,150 lbs.
Overall Dimensions : 152" x 35" x 56"
