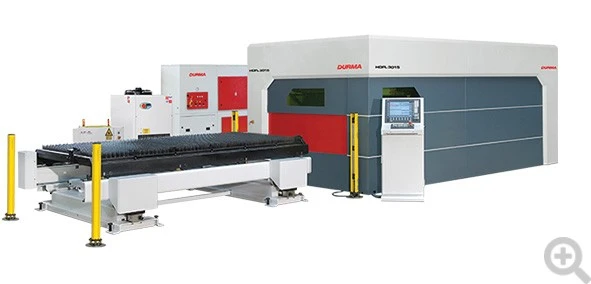

HD-F Series Fiber lasers outshine with its fast cutting and energy efficiency abilities when especially its compared to CO2 lasers. HD-F Series Fiber Laser is unrivaled with its rigid body structure, perfect filtration system, compact design, efficiency and user friendliness.
Axes motion is achieved by rack and pinion design. There are not any intermediate load transmitting elements between the motor and the pinion which otherwise could cause precision losses. High precision two-day, hardened helical racks with low clearance make it possible to achieved very high acceleration, speed, and accuracy.
HD-F Series Fiber Laser today, tomorrow and forever with you.
Cutting Head / Focus Precitec Procutter F150
Software Lantek Expert Cut II
Cutting Axes
X Axis: 3100mm (122")
Y Axis: 1530mm (60")
Z Axis: 160mm (6")
Max. Sheet Size: 3048mm x 1524mm (120" x 60")
Max. Sheet Weight Per Square
Meter for One Table: 240 (corresponds to 30mm sheet)kg/m2
Max. Total Sheet Weight for Double Table: 1820(corresponds to 50mm sheet)kg
Dynamics
Max. Speed X-axis: 120 m/min.
Max. Speed Y-axis: 120 m/min.
Max. Speed Z-axis: 35 m/min.
Max. Synchronous Speed (X-Y): 170 m/min.
Max. Synchronous Acceleration: 28 m/s2
Positional Accuracy: ± 0,05 mm
Repeatability: ± 0,05 mm
Table Change Time: 19 sec.
Edge Dedection Accuracy*: ± 1 mm
Control Unit
CNC: SINUMERIK; 840D SL; NCU 720.3PN
PC: PCU50.3: 19" Touch panel
Laser Cutting Head
Type: Procutter/Zoom Head(option for 6-8-10 kW)
Focus Length: 150 / 200(option for 8-10 kW) / 200(std. for 12-15 kW)
Focus: Automatic
Filter
Capacity: 2500 m3/h
Power: 4 kw
Chiller IPG
Chiller for 2 kw: LC71
Chiller for 3 kw: LC170
Chiller for 4 kw: LC170
Chiller for 6 kw: LC170
Chiller for 8 kw: LC340
Chiller for 10kw-12kw-15kw: LC340
*Edge Dedection Accuracy may vary depending on the edge radius and quality of the sheet.
TECHNICAL DATA
Max. Cutting Thickness depending on Laser Power*
Material 6kw
Mild Steel 25
Stainless Steel 15(20)
Aluminum (AlMg3) 20(25)
Copper 10
Brass 12
Electrical Consumption
Laser Source Power Technical Data
IPG 6kw 8.8 kw
Chiller 6kw 8.1 kw
Filter 6kw 4.1 kw
Electrical Panel 6kw 8.9 kw
Average Electrical Consumption of Machine
Total Power 6kw 29.6 kw
| Filter |
| Scrap Removing: Scrap Box |
| Shuttle Table: Automatic with Servo motors |
| Software: Lantek Expert Cut II |
| Transformer |
