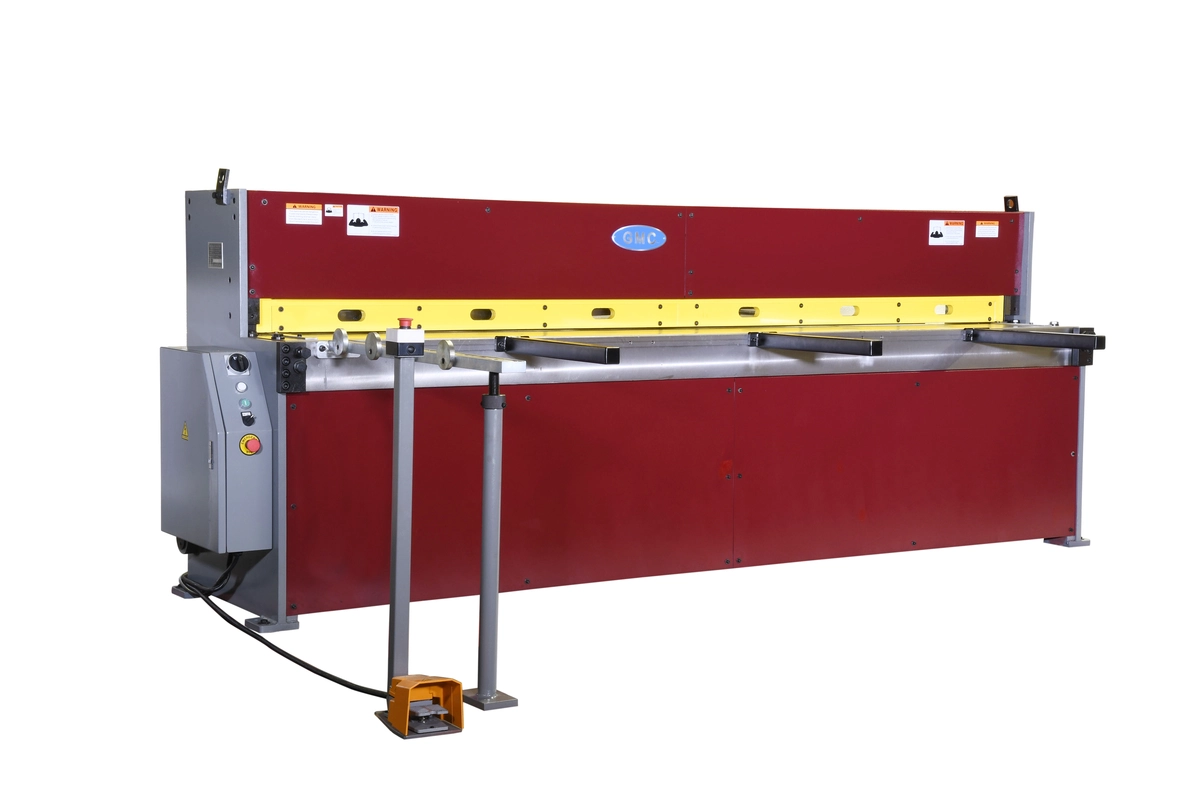

10' x 14 Ga. Hydraulic Metal Shear - Shearing Machines
Have one to sell?
ConditionNew
1 available
New
New 10' x 14 Ga. Hydraulic Metal Shear for sale! Model HS-1014MD with a cutting capacity for various materials, 10'1" blade length, and adjustable strokes. Features include a German Rexroth hydraulic system and ISO 9001 certification. Contact us for more info.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Cutting capacity:
mild steel
stainless steel
min. thickness
soft aluminum, tensile 28,000PSI: 10’ x 14Ga.
10’ x 18 Ga
26Ga.
10Ga.
Blade length: 10’1”
Strokes per minute adjustable: 14-18
Throat depth: 16”
Worktable height: 30-1/2”
Front support arm: 24”
Back gauge, manual: 26” manual
blade rake angle: 1.5 degree
oil tank cap.: 20gal
Main motor: 5-1/2 HP
220V/440V, 3PHASE
Machine weight: 5,200 LBS
Machine dimensions: 139”X35”52”
Taiwan machines
ISO 9001 certified
HD all steel construction for maximum rigidity
German logic quiet Rexroth hydraulic system
Adjustable stroke from 16-20 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 2-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
