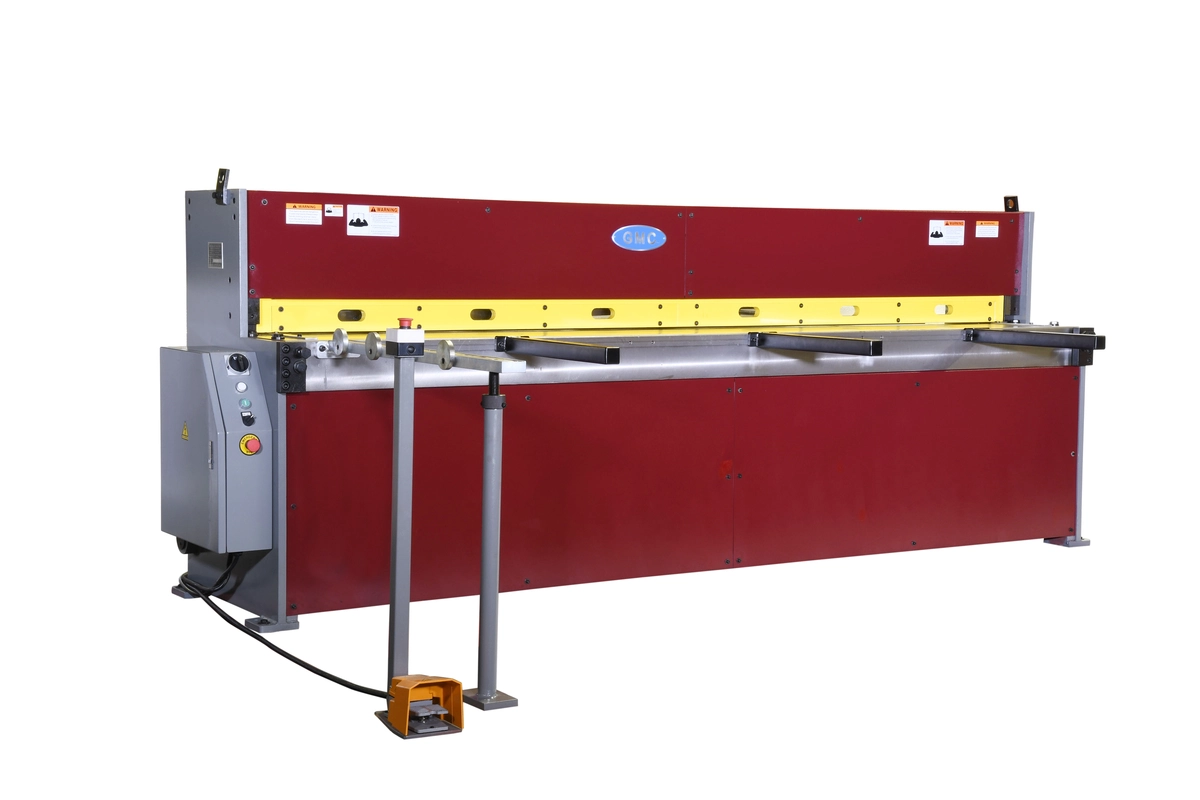

HS-0610MD, 6' x 10 Ga. Hydraulic Metal Shear
Have one to sell?
ConditionNew
1 available
New
Our HS-0610MD, 6 foot hydraulic metal shears can cut up to 10 gauge by 72” wide mild steel sheet metal. A hardened shearing blade is installed and pre-gapped ready for buyers to operate upon arrival. Our light duty hydraulic shears are dependable and deliver sharp razor cuts with ease.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
For more information or i
Cutting Capacity:
Mild Steel
Stainless Steel
Soft aluminum
Minimum Capacity: 6' x 10Ga.
6' x 14Ga.
6' x 1/4" Ga.
24 Ga.
Blade Length: 6' 6"
Strokes per minute adjustable: 16-20
Throat depth: 16"
Worktable height: 30 1/2"
Front support arm: 24"
Back gauge: 26"
Blade Rake Angle: 1.5 Degree
Oil Tank Capacity: 21 Gal
Main Motor: 5 1/2 HP
Prewired: 220/3-Phase
Optional: 440V 3-Phase
Machine Weight: 4,150 lbs.
Machine Dimensions: 98" x 35" x 52"
Taiwan machines
ISO 9001 certified
HD
all steel construction for maximum rigidity
German logic
quiet
Rexroth
hydraulic
system
Adjustable stroke from 16-20 strokes per minute

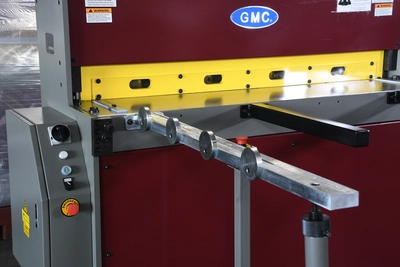

60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
High grade carbon/chrome alloy steel
blades
and hardened to 6
2
HRC,
2-edge indexable upper blade and 2-edge indexable bottom blade
Full length
with
full view finger guard
Front supports and
(2)
side gauges
Safety type foot pedal control
Safety type foot pedal
control
Jog, single continuous auto
operation
modes
One year warranty for parts
