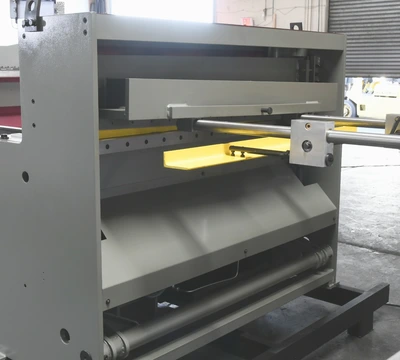

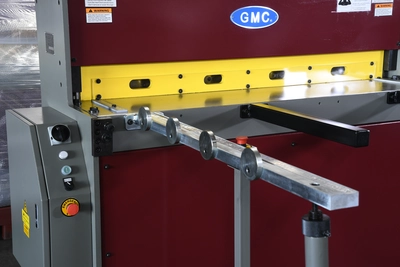

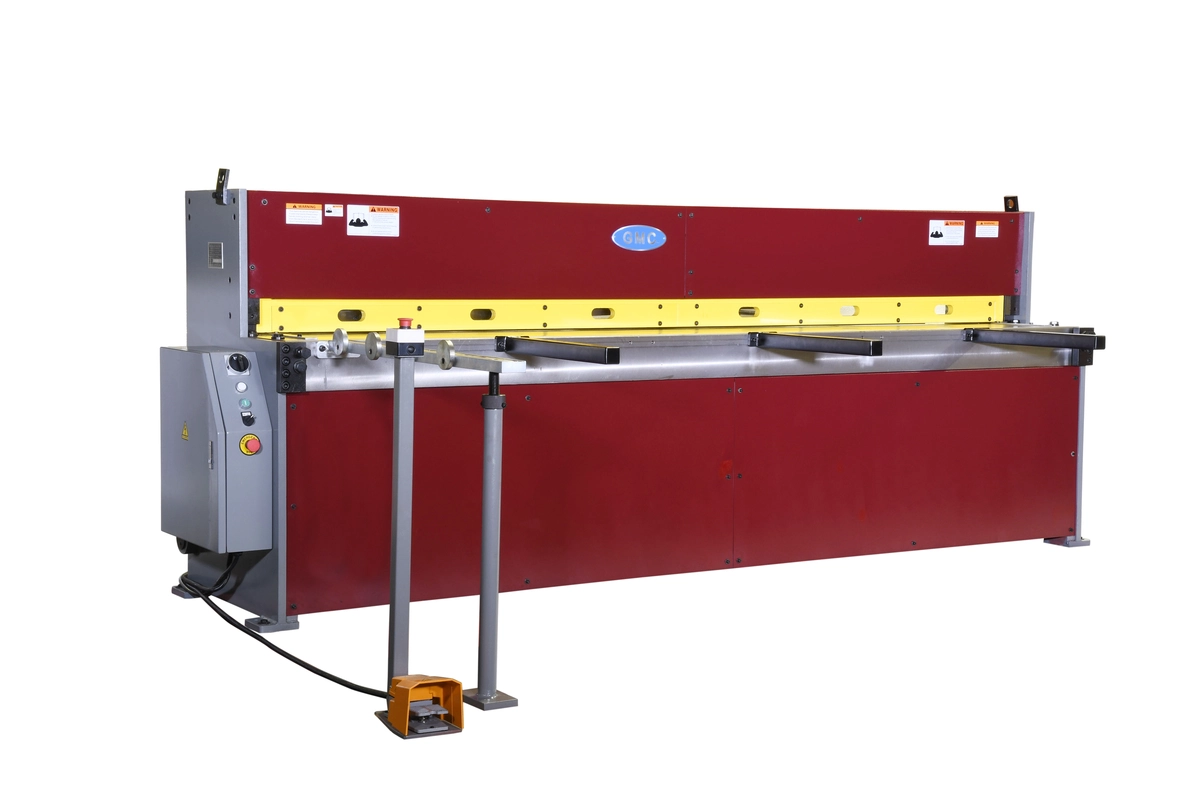

HS-0810MD, 8' x 10ga. Hydraulic Metal Shear
Have one to sell?
ConditionNew
1 available
New
New HS-0810MD Hydraulic Metal Shear, offering precision cutting for a range of metals. Features an 8' 2" blade, adjustable strokes, and 7-1/2 HP motor. Prewired for 220V, optional 440V. Ideal for various thicknesses up to 8'x1/4". Contact for details.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
For more information or i
Cutting Capacity:
Mild Steel
Stainless Steel
Soft aluminum
Minimum Capacity:: 8' x 10Ga.
8' x 14Ga.
8'x1/4"
24 Ga.
Blade Length: 8' 2"
Strokes per minute adjustable: 14-18
Throat depth: 16"
Worktable height: 30 1/2"
Front support arm: 24"
Back gauge: 26"
Blade Rake Angle: 1.5 Degree
Oil Tank Capacity: 26 Gal.
Main Motor: 7-1/2 HP
Prewired: 220V/3-Phase
(Optional: 440V 3-Phase)
Machine Weight: 5,650 lbs.
Machine Dimensions: 118" x 35" x 52"
