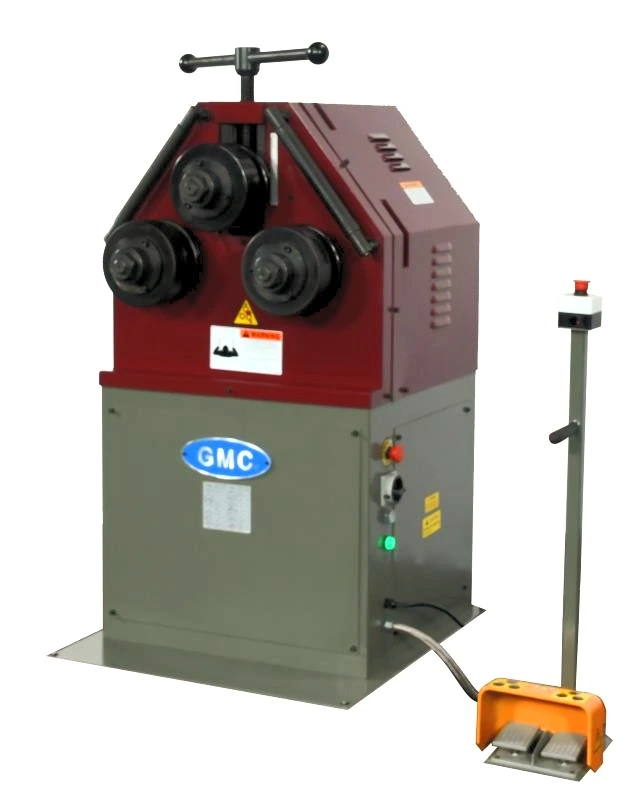

Ring and Angle Roll Bender with Manual Positioning | Single Phase
Have one to sell?
ConditionNew
1 available
New
This machine has a 3 HP Motor, rated at 220V, three phase. Gear driven manual positioning. 2” Dia. of roller shaft, 7-1/2” roller Dia.
Model: PRB-55-1PH
Roll Adjustment: Manual
Dia. of roller: 7-1/2”
Dia. of roller shaft: 2”
Roller speed: 16 RPM
Main Motor: 4 HP Single Phase
Prewired: 220VAC | 15A
Dimensions: 40in x 35in x 65in
Weight: 1,120 LBS
Oil Tank Capacity
(only fill up 90%): 7 Gal.
Recommended Hydraulic Oil: Texaco-Rando HD-68 Hydraulic Oil
Shell AW-68 Hydraulic Oil
ISO 9001 certified

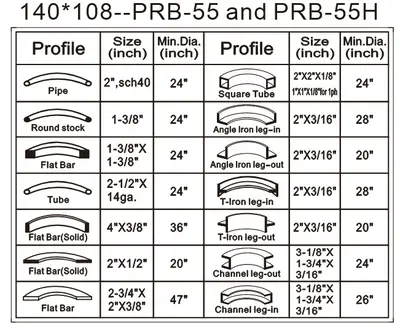

2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Easy to operate in two positions; vertically and horizontally on its back
DRO - Digitally displays your exact position and ensures repeatability
Heavy Duty 4HP AC main motor

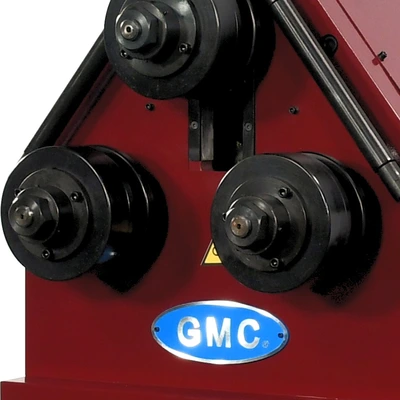

1 - Top forming roll (hydraulic driven)
2 - Driven bottom rolls
Robust, all steel and welded framework
Quiet, compact, hydraulic system
that ensures precision and improves productivity
Adjustable pressure control valve
1-year parts only warranty
and lifetime tech support by video and phone
