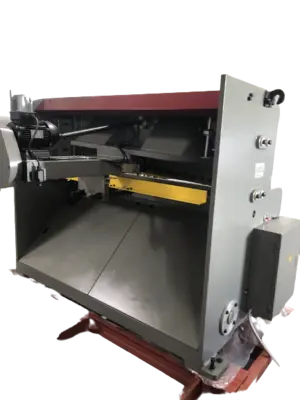

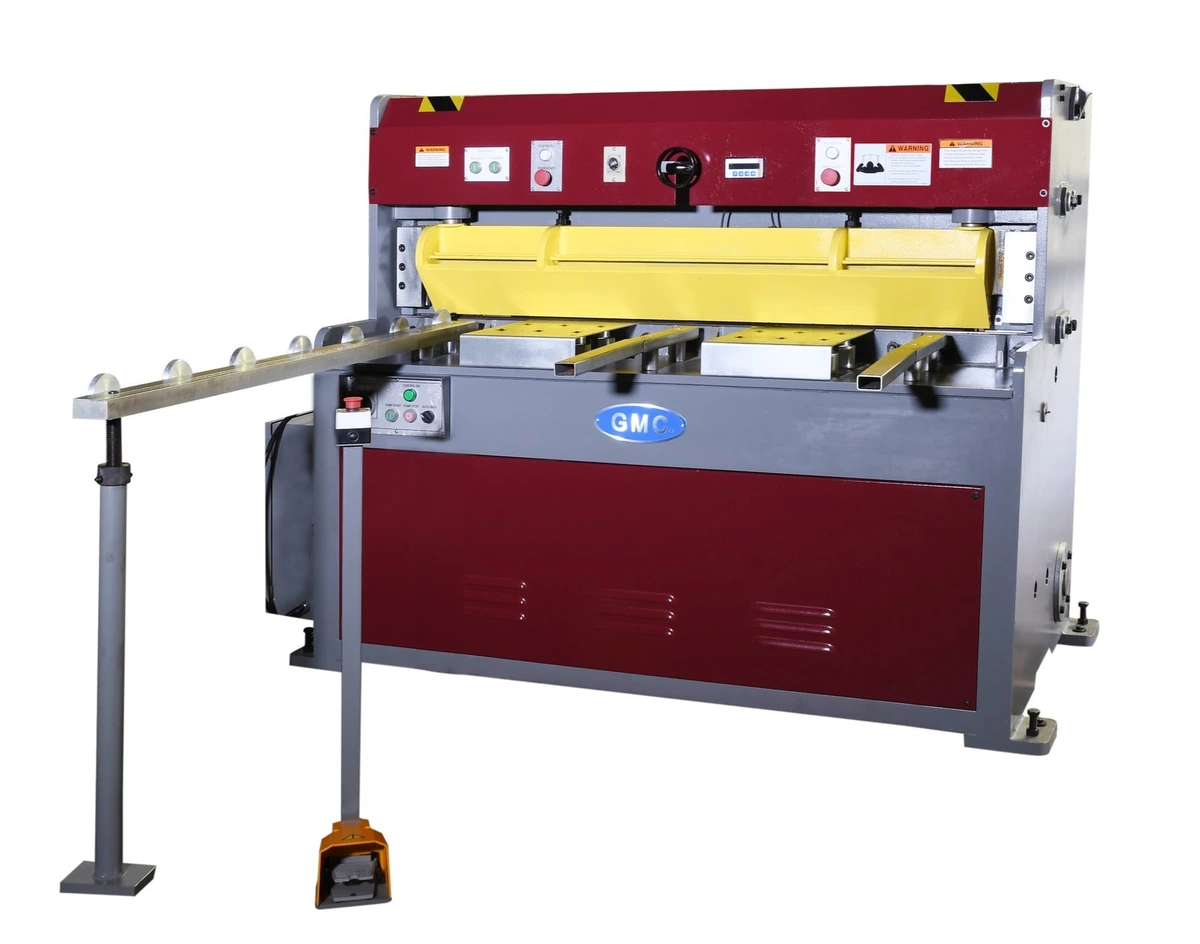

HS-0625E, 6' x 1/4" Hydraulic Metal Shear - Electric Backgauge
Have one to sell?
ConditionNew
1 available
New
the Sheet Metal Shear HS-0625E by GMC Machine Tools offers exceptional cutting power, precision, and durability. With its versatile capabilities, user-friendly design, and advanced safety features, this machine is the ideal choice for metalworking professionals seeking efficiency and superior results. Invest in the HS-0625E and experience enhanced productivity and profitability in your sheet metal cutting operations.
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
is incompatible with the use of a rotary phase converter
will automatically void the warranty.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Cutting capacity:
Mild steel
Stainless steel
soft aluminum
min. thickness: 6’ x ¼”
6’ x 10 Ga.
6' x 3/8"
20 Ga.
Blade length: 6'6"
Strokes per minute: 10-17
Worktable height: 34 1/2"
Front support arm: 24"
Back gauge for E model: 24" powered B.G.
Blade rake angle: 2 degree
Oil tank cap.: 31 Gal
Main Motor
Powered B.G. Motor: 15 HP, 220V/60A
440V/30A
1 HP
Machine weight: 7,650 LBS
Machine dimmensions: 102" x 89" x 63"
ISO 9001 certified
Taiwan machines
24
” SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, auto
matic
blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
