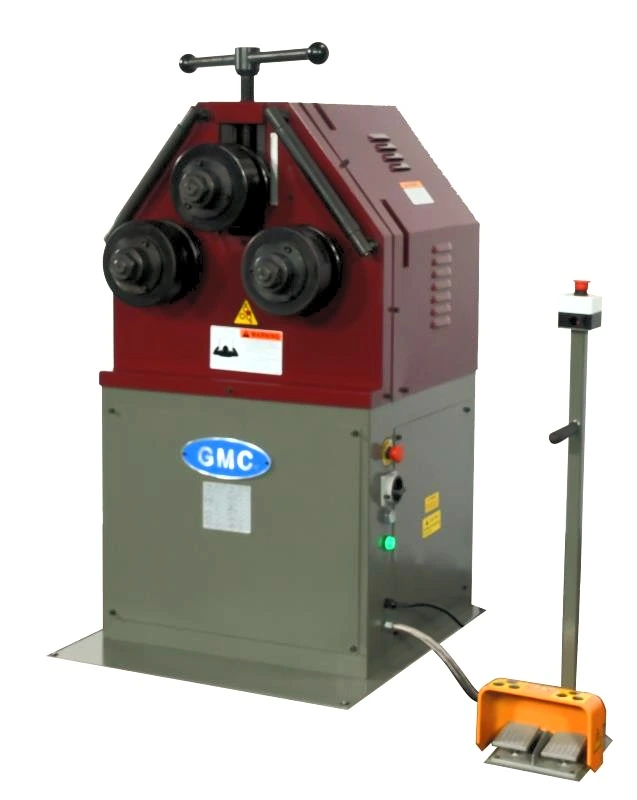

New PRB-55-3PH Angle Roll Bender with manual positioning, features 3HP motor, robust all-steel frame, and ISO 9001 certification. Accommodates various pipes and tubes with precision. Ideal for heavy-duty applications. Dimensions: 40"x35"x65". Weight: 1050 lbs.

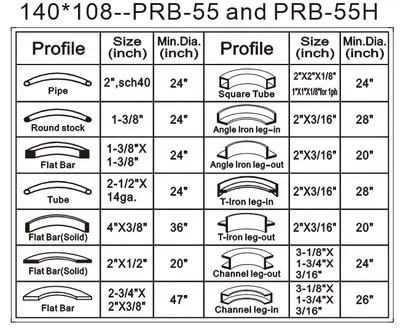

Model: PRB-55
Pipe Capacity: 2” schedule 40 / Min. Dia.24”
Tube Capacity: 2-1/2”x14 Ga. (wall) / Min. Dia. 24”
Solid Round Tube: 1-3/8” / Min. Dia. 24”
Square Tube: 2”x2”x3/16” (wall) / Min. Dia. 24”
Solid Square Tube: 1-3/8”x1-3/8” / Min. Dia. 24”
Solid Flat Bar: 4”x9/16” (wall) / Min. Dia. 36”
Solid Flat Bar: 2-3/8”x3/8” (wall) / Min. Dia. 20”
Angle Flat Bar: 2-3/4”x2”x3/8” (wall) / Min. Dia. 47”
Angle Iron Leg-In: 2”x3/16”(wall) / Min. Dia. 28”
Angle Iron Let-Out: 2”x3/16”(wall) / Min. Dia. 20”
T-Iron Leg-In: 2”x3/16” (wall) / Min. Dia. 28”
T-Iron Leg-Out: 2”x3/16” (wall) / Min. Dia. 20”
Channel Leg-In: 3-1/8”x1-3/4”x3/16” / Min. Dia. 26”
Channel Leg-Out: 3-1/8”x1-3/4”x3/16” / Min. Dia. 24”
Dia. of Roller: 7 1/2"
Dia. of Roller Shaft: 2"
Roller Speed: 16 RPM
Motor: 3 HP, 220VAC 3-Phase
(Optional 440VAC)
Dimensions: 40" x 35" x 65"
Weight: 1,050 lbs.
ISO 9001 certified
2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Heavy Duty 3HP AC main motor

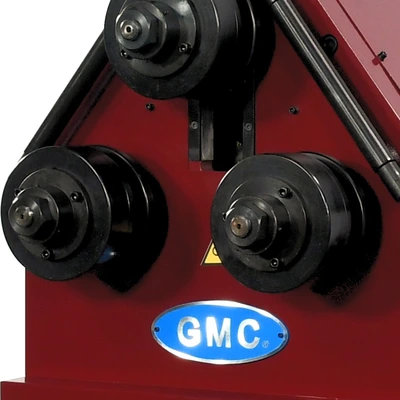

1 top forming roll (manually driven)
2 driven bottom rolls
Robust, all steel and welded framework
1-year parts only warranty and lifetime tech support by video and phone
