DURMA AD-S 40220
Have one to sell?
ConditionNew
1 available
New

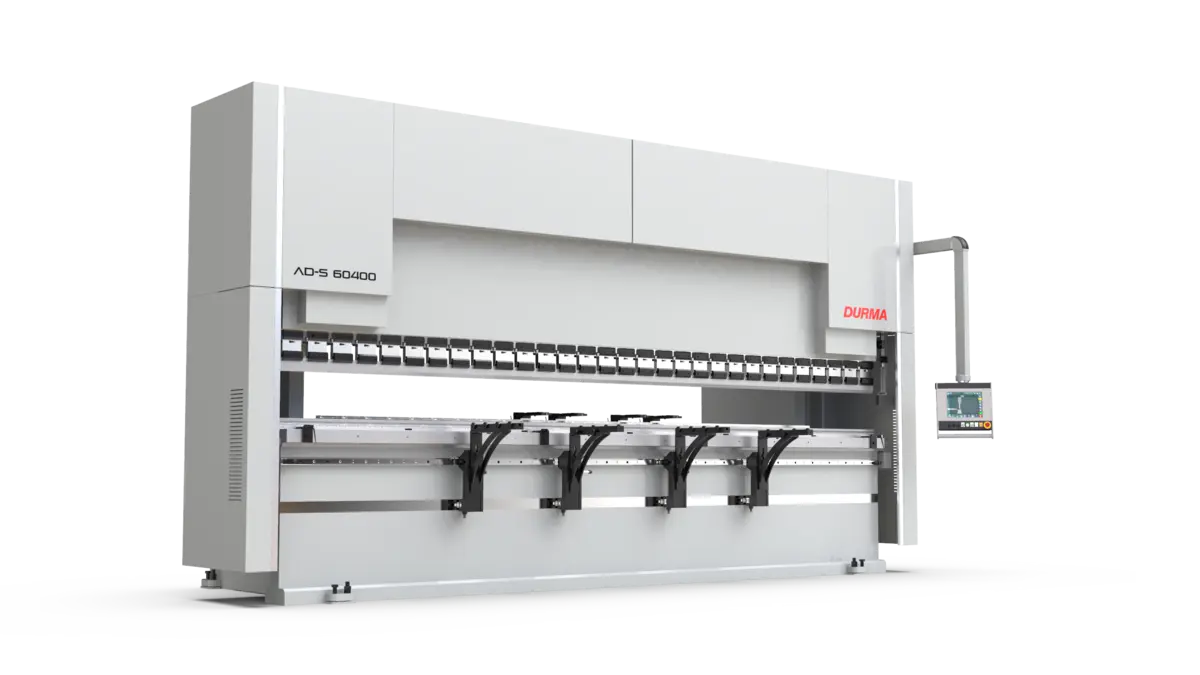

AD-S Press Brakes
AD-S Series press brakes, designed with high technology to increase efficiency on precise part bending. With Easy-to-use control unit, stabile body structure, perfect design, low operating cost, different tool usage options, maximum safety standards, DURMA press brake is the best in the world in its segment.
Bending performance is increased by using high quality European clamping system and easiness to use. DURMA is your solution partner with various tool options
DURMA provides the best level of service and spare parts with qualified personnel and spare parts in stock. Therefore, with DURMA press brakes you can always achieve perfect result.
Metric Imperial
Bending force: 220 metric-tons 242 US-Tons
Distance Between Columns: 3600mm 141.5"
Stroke: 265mm 10.5"
Daylight: 530mm 20.86"
Throat Depth: 450mm 17.71"
Table Height: 900mm 35.5"
Table Width: 104mm 4"
Y Rapid Speed: 140mm sec. 5.5" sec.
Y Working Speed: 10mm sec. 0.4" sec.
Y Return Speed: 140 sec. 5.5" sec.
X As Working Speed: 500mm sec. 19.5" sec.
R Axes Working Speed: 350mm sec. 13.75"sec.
R Axes Working Distance: 250mm 9.75"
X Axes Distance: standard 650mm 25.5"
optional 1000mm 39"
Motor power: 22kw 30hp
Bending Length: 4050mm 159.5"
Width: 1770mm 89.5"
Height: 2900mm 114"
Weight Approx.: 12250kg 27,000lbs
