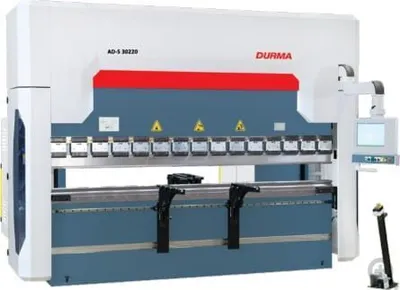

DURMA AD-S 40220

Description

AD-S Press Brakes

AD-S Series press brakes, designed with high technology to increase efficiency on precise part bending. With Easy-to-use control unit, stabile body structure, perfect design, low operating cost, different tool usage options, maximum safety standards, DURMA press brake is the best in the world in its segment.

Bending performance is increased by using high quality European clamping system and easiness to use. DURMA is your solution partner with various tool options

DURMA provides the best level of service and spare parts with qualified personnel and spare parts in stock. Therefore, with DURMA press brakes you can always achieve perfect result.

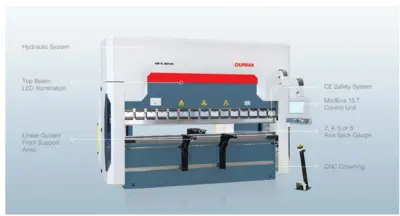

General Specifications

- High sensitivity, Stress relieved steel construction body, long life Mono Block Frame
- Automatic calibration and first start up
- DURMA designed and copyrighted guiding system
- Ball Screw and linear guide integrated perfect back gauge system
- Durable, long life and sensitive bending capable special hardened top tools
- Suitable for segmented tools special and fast tool holding system
- Sensitive solutions on Long and deep bending
- High accuracy linear scales
- CE safety standards
- Best quality worldwide accepted hydraulic and electric components

Strong Back Gauge Systems

- Fast and high accuracy
- Safe movement Resistance to crash
- Maintenance free
- Adjustment availability at every point

Standard Equipment

- Y1, Y2, X, R (4-Axis) X=650mm X,R (AL - double gayt )
- Control Unit - CNC ModEva15T
- D-BEND 3D CAD/CAM Importing & Simulation Program
- Servo motor back gauge & linear guided & ball screw system (X-R)
- CNC crowning
- European style tool clamping system
- Sliding front arms (With T-Slot and stopper)
- World standards special design hydraulic block and valves
- World standard electric equipment

Optional Equipment

- F1-F2 Front feeding system with supports 3 meters- pneumatic pushers (2 Feeding + 2 support)
- Control unit - Mod Eva Premium, 69T and 66T
- CE Manuel F. AKAS II M FPSC-B-C + safety covers with switch
- CE F. AKAS-LC II AKAS-3 M Motorized + FPSC (safety PLC)
- CE BLVT safety – only for tandem machines
- Z1, Z2 axis
- X1, X2 axis
- R1, R2 axis
- Delta X axis +/- 125mm with CNC Controlled
- X axis = 1000 mm – light barrier back protection

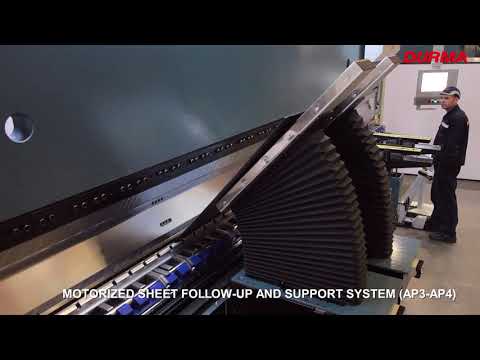

- AP3-AP4 sheet following system
- Height adjustable laser angle measurement system
- Quick release clamping system
- Hydraulic and pneumatic tool clamping systems
- Bottom and top tools Bottom tool separation system
- Parking area
- Central lubrication system
- Oil cooler
- Additional back gauge finger and sliding front support arms Special packing for overseas shipments
