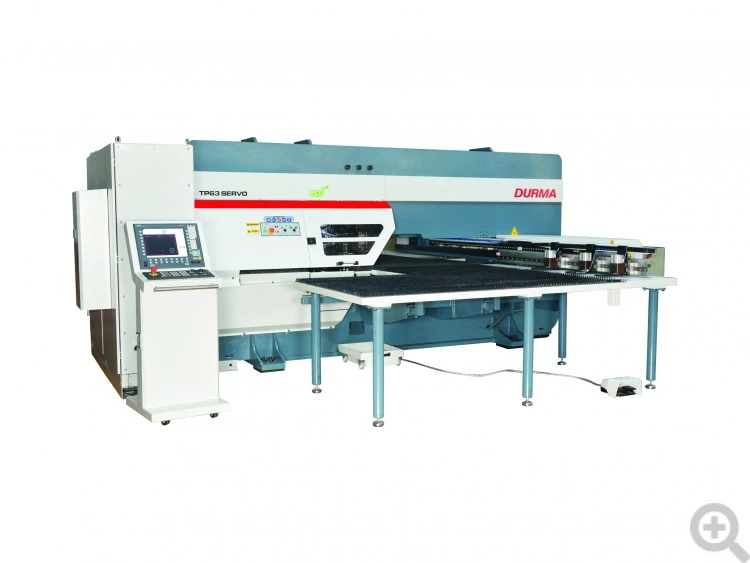

TPL93 Durma Turret Punch
Have one to sell?
ConditionNew
New
TP Punch Press, offers significantly faster punching speeds than mechanical turrets. The punching head stroke rates of 1200 strokes per minute during punching and 3200 per minute during marking. Also can be forming at punching speed. The machine control adjusts stroke travel speed and position. Simplifies setup of progressive forms, flanges, and embossments.
With roller technology are possible not only on straight geometries but also on curved and round areas. This method is of particular interest for sectors such as air conditioning technology.
TP Series Turret Punch Press today, tomorrow and forever with you.
Capacity: 30 Tons
Hit rate: 1200 per minute
X-Y Axis (+ Reposition): 1500x3000
Command pedal
CAD-CAM software & Activator (Dongle)
Control unit, Siemens Sinumerik 840 D SL Windows 7 operating system Remote diagnostic function
Programming on the control panel
Automatic clamp positioning.
Sheet set switches on clamps
Network, Ethernet communication.
Automatic tool lubrication
UPS for control panel
Movable scrap box
Brush table
Oil Cooler
USB Driver
Reposition on X axis
Alignment Tools for Index Stations (D Station)
Manual nesting
Warning lamp
Light barriers for CE
